Why Architectural Working Drawings Are Essential Before Construction in Kenya

What are architectural working drawings? Architectural working drawings are comprehensive, dimensioned technical documents and material schedules that translate an approved design concept into an actionable guide for site construction. In Kenya's fast-moving construction and renovation sector, working drawings are the vital bridge between creative vision and physical reality—giving site contractors, workshop fabricators, and engineers the exact dimensions, tolerances, and specifications needed to build accurately without guesswork.

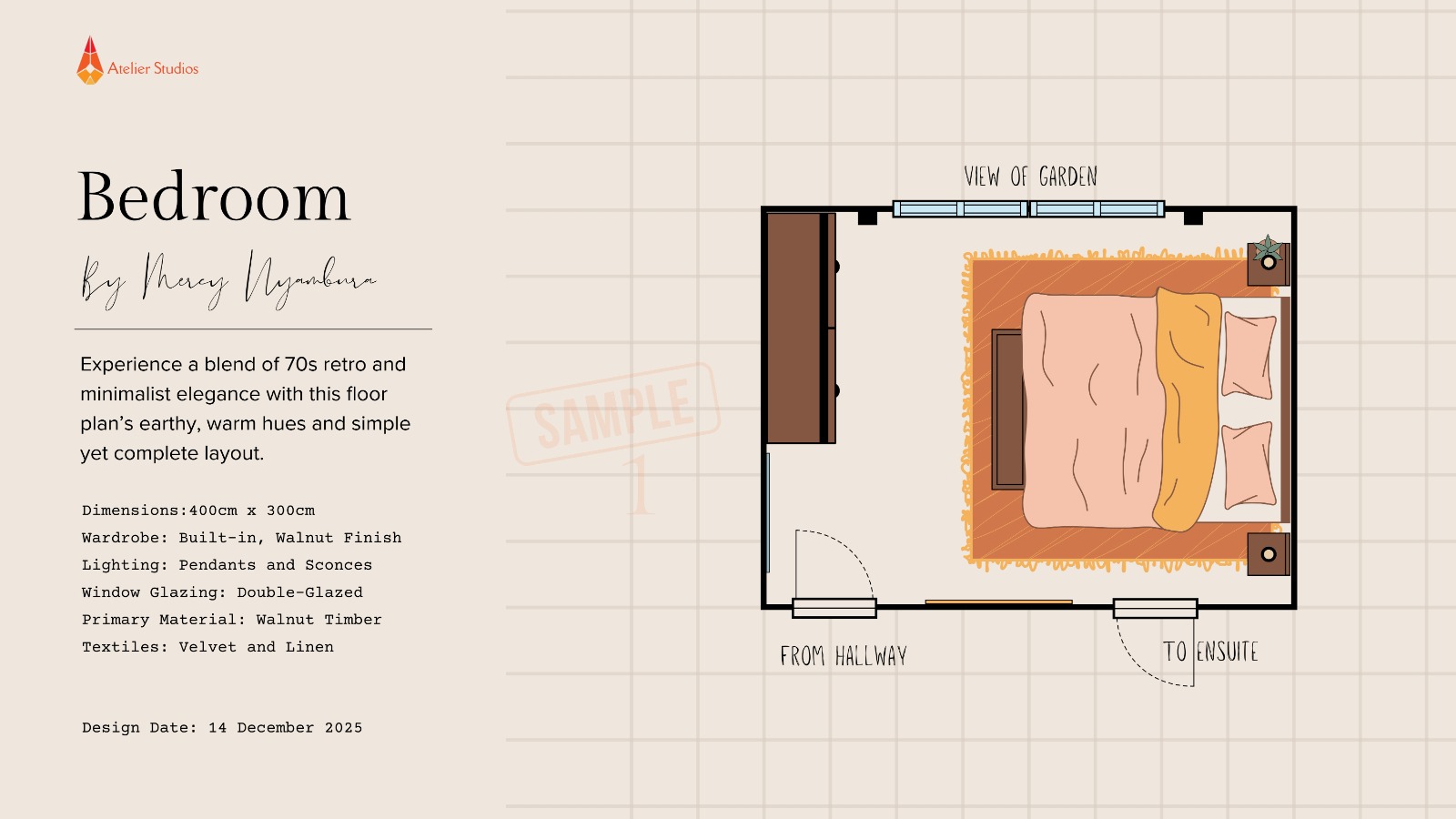

Technical Layout Sample: Detailed 400cm × 300cm residential bedroom floor plan specifying built-in joinery, double-glazed window orientation, and exact lighting points.

Why Architectural Working Drawings Matter Before Breaking Ground in Kenya

Many property owners and commercial operators in Nairobi begin projects with 3D concept renders or preliminary sketch layouts, assuming site contractors can execute directly from visual pictures. However, building without dimensioned working drawings frequently leads to costly site conflicts, structural misalignment, wasted building materials, and delayed handovers.

A professional working drawing package eliminates site ambiguity by documenting millimeter-precise measurements, door swing clearances, window rough openings, load points, and service conduits. Whether developing a custom residential interior in Nairobi, renovating an executive commercial office, or fabricating a steel container structure, working drawings ensure that what was visualised on screen matches what is constructed on site.

Working drawings remove ambiguity on the construction site. When contractors have millimeter-accurate dimensions and material schedules, execution becomes predictable, efficient, and aligned with the client's budget.

Truth and Tikva Building Works

3D Concept Renders vs. Architectural Design vs. Working Drawings

To understand the building journey, it is essential to distinguish between the three core stages of project development:

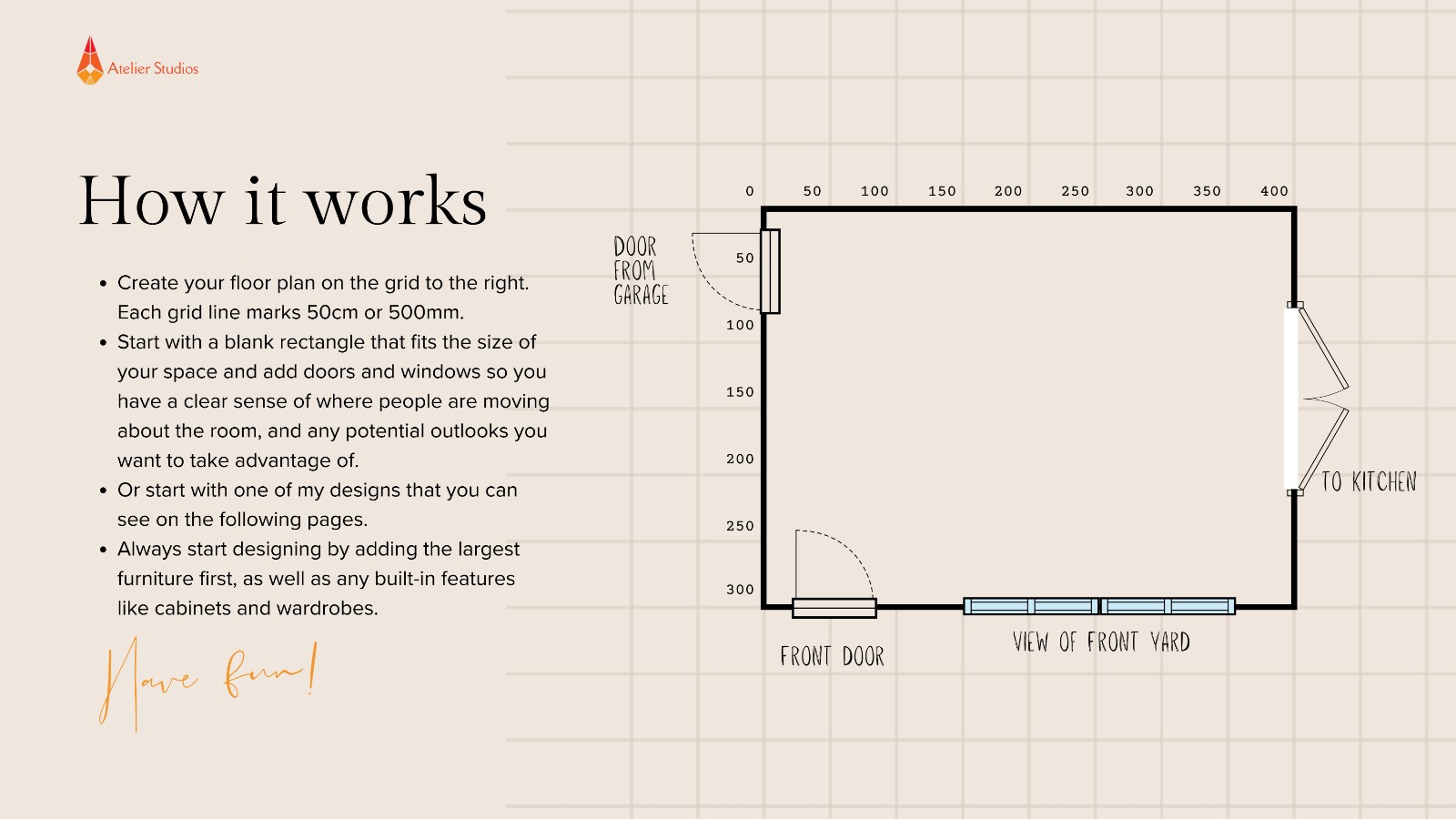

Space Planning Grid: 500mm module framework establishing door openings, circulation corridors, and equipment clearances.

Material Specification: Coordinated finishes palette showing walnut timbers, textured linens, and ambient lighting fixtures.

Core Components of a Professional Working Drawing Package

A comprehensive technical drawing package prepared for construction in Nairobi typically includes five interconnected layers of information:

• 1. Dimensioned Floor & Partition Layouts: Exact internal wall coordinates, room boundaries (e.g. 500cm × 400cm lounge, 400cm × 300cm bedroom), wall thicknesses, and window/door rough openings.
• 2. Door & Window Schedules: Specifications for glazing types (such as acoustic double-glazing), frame profiles (powder-coated aluminium or welded steel), swing directions, and hardware tolerances.
• 3. Bespoke Joinery & Cabinetry Drawings: Millimeter-level details for built-in wardrobes, kitchen islands, study desks, and vanity units, detailing carcass materials, shelf spacing, and hardware fixings.
• 4. MEP (Mechanical, Electrical & Plumbing) Rough-In Points: Precise positioning of electrical switches, sconces, pendant drops, power sockets, plumbing feeds, and wastewater traps to prevent clashes with structural framing.
• 5. Material & Finishes Schedules: Detailed schedules identifying floor tile formats, skirting heights, wall claddings, timber stains, and paint codes so procurement teams order the correct quantities.

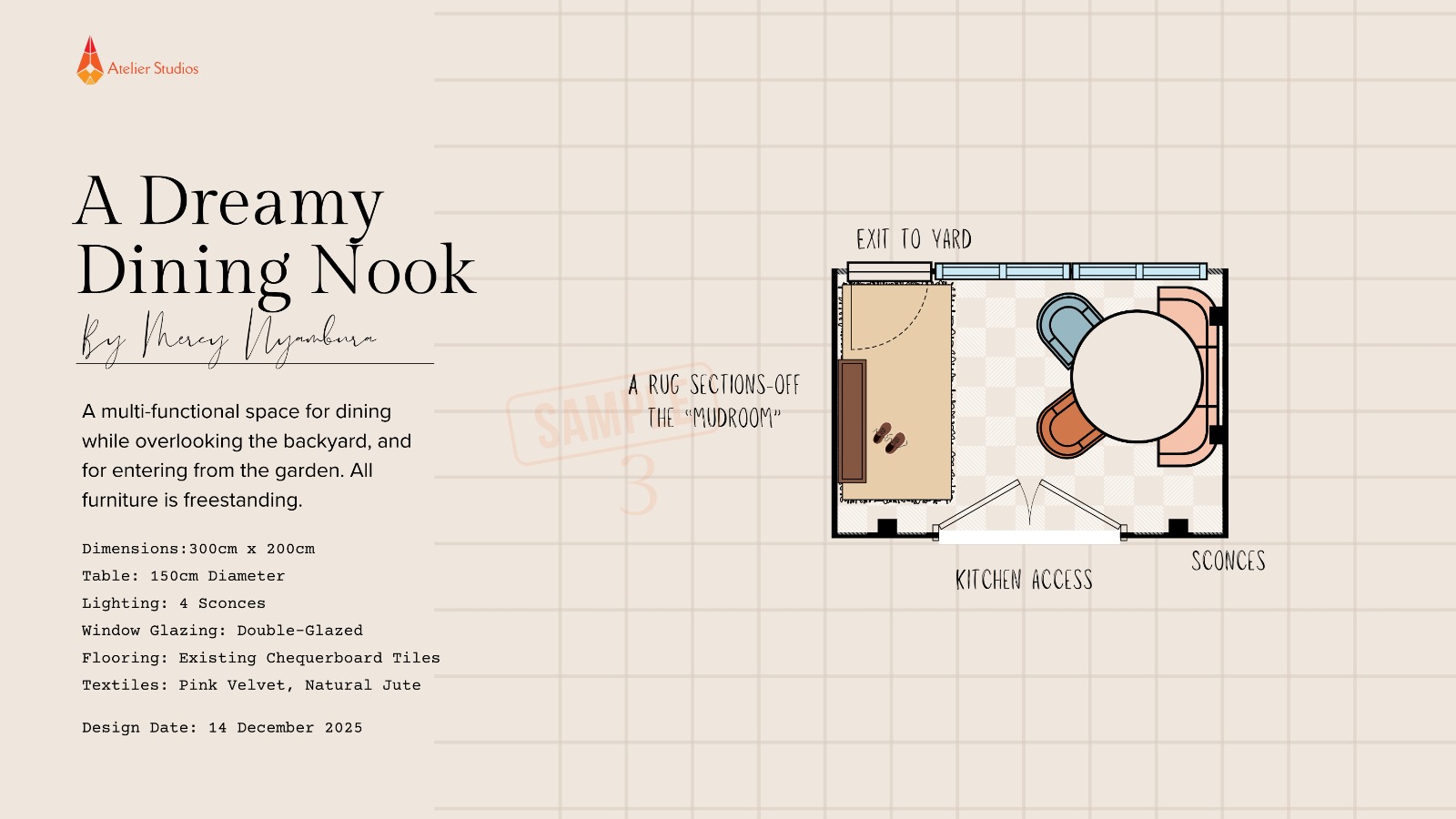

Dining Nook Layout: 300cm × 200cm spatial plan with 150cm diameter table and integrated mudroom entry.

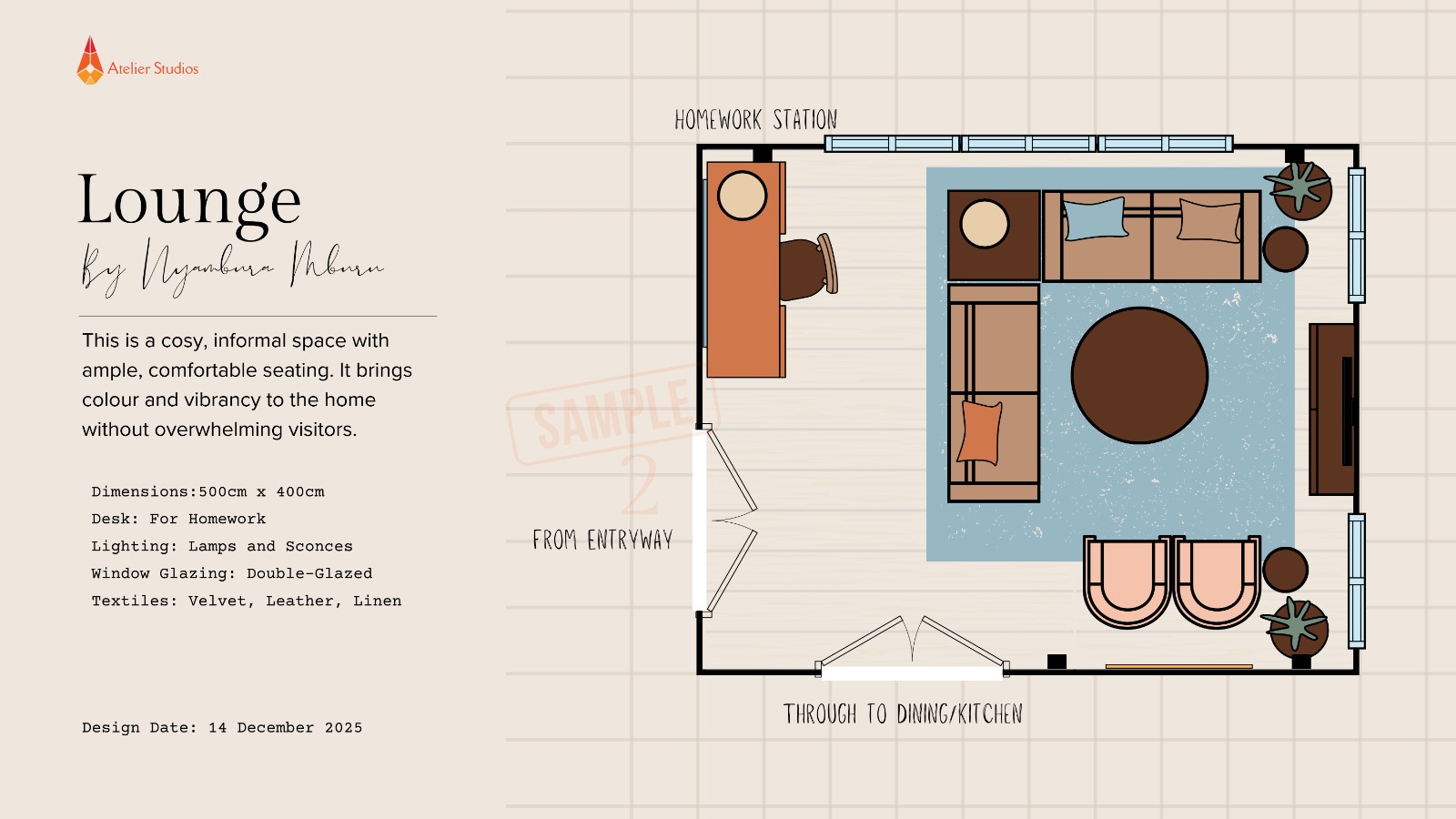

Lounge & Study Drawing: 500cm × 400cm living space integrating double-glazed glazing and homework desk.

How Working Drawings Save Costs on Kenyan Construction Sites

In Nairobi and across Kenya, unexpected project costs often stem from on-site "interpretations." When masonry teams or metal fabricators lack exact working drawings, they make ad-hoc decisions on site that frequently require demolishing newly built walls, rerouting electrical conduits, or modifying custom cabinetry after installation.

Investing in detailed architectural working drawings upfront provides three direct commercial benefits:

• Accurate Bills of Quantities (BQ): Quantity surveyors can calculate concrete, steel, timber, and tile quantities accurately, preventing expensive over-ordering or mid-project shortages.
• Strict Contractor Accountability: Site engineers can verify each contractor's physical work directly against signed, approved drawing dimensions.
• Seamless Shop Fabrication: Off-site workshops can fabricate steel framing, cabinetry, and custom windows concurrently while foundation and civil works proceed on site, accelerating project delivery.

The T&T Connected Journey: From Idea to Built Reality

At Truth and Tikva Building Works, we view design and construction as a continuous, unified process rather than disconnected handoffs. Our design team develops concepts with real-world constructability in mind, ensuring every detail drawn can be fabricated and installed efficiently on site.

The journey progresses through five clear milestones:

1. Client Idea & Site Brief: Clarifying spatial needs, lifestyle preferences, commercial goals, and site opportunities.
2. 3D Concept Renders: Visualising materials, natural lighting, and layout possibilities in high-fidelity 3D models.
3. Architectural Design: Resolving circulation, room proportions, spatial zoning, and regulatory considerations.
4. Technical Working Drawings: Producing millimeter-dimensioned plans, joinery details, MEP rough-ins, and material specification schedules.
5. Physical Construction & Fabrication Implementation: Translating approved drawings into completed residential homes, commercial offices, and custom hospitality spaces across Kenya.

Frequently Asked Questions About Working Drawings in Kenya (AEO / FAQ)

1. Who creates architectural working drawings in Kenya?

Architectural working drawings are prepared by professional architectural designers and technicians in coordination with structural engineers and quantity surveyors. At T&T, our design and engineering team develops coordinated drawing packages tailored for Kenyan building standards and site conditions.

2. Can a contractor build directly from 3D concept renders without working drawings?

No. 3D concept renders show aesthetic intent, colors, and lighting, but they lack critical technical information such as structural dimensions, wall thicknesses, reinforcement specifications, and plumbing/electrical conduits. Attempting to build from renders alone leads to severe site errors, safety risks, and budget inflation.

3. How long does it take to produce a complete working drawing set?

Depending on project scale and complexity, a comprehensive working drawing package for a residential home or commercial fit-out typically takes between 2 to 4 weeks once the concept design is approved.

4. Are working drawings required for home renovations and interior fit-outs?

Yes. Even in renovation projects, working drawings are essential for documenting which walls can be altered, where custom cabinetry connects, exact electrical point locations, and how new plumbing interfaces with existing service lines.
